8CH MUX/DEMUX
1.?Mechanical?Specification
Performance?Specifications?(產品指標)
?
Parameter
8?Channel?EAST & West?MUX/DMUX
Channel Wavelength/通道波長(nm)
ITU 100 GHz Grid(C31-C38)
Center?wavelength Accuracy/中心波長精度
±0.05
Channel?Spacing?(GHz) /信道間隔GHz)
100
Channel?Passband (@-0.5dB bandwidth) (nm)/信道帶寬
≥0.22
Insertion?Loss/插入損耗(dB)?EAST & West
≤2.8(with?Connector)
Channel?Uniformity/信道均勻性(dB)
≤1.0
Channel?Ripple/信道平坦度(dB)
≤0.3
?
Isolation信道隔離度(dB)
Adjacent/相鄰
>28
Non-adjacent/非相鄰
>40
Polarization?Dependent Loss/偏振相關損耗(dB)
<0.15
Polarization?Mode Dispersion/偏振模式色散(PS)
<0.1
Directivity/方向性(dB)
>50
Return?Loss/回?fù)p (dB)
>45
Maximum?Power Handling/最大工作功率(mW)
500
Operating Temperature/工作溫度(℃)
-20~+70
Storage Temperature?/儲藏溫度(℃)
-40~85
2.?Case
?
Parameters
Values
Packaging?Dimension
LGX?(EAST & West)
Fiber?Type
SM28e
Connector
LC/PC
?
3.?Configuration
?
3.1 Port Insertion Loss
?
No
Wavelength(nm)
IL(dB) Max?(DEMUX)
IL(dB) Max.?(mux)
1
1552.52?C31
2.8
1.0
2
1551.72?C32
2.6
1.3
3
1550.92?C33
2.4
1.6
4
1550.12?C34
2.2
1.9
5
1549.32?C35
1.9
2.2
6
1548.51?C36
1.6
2.4
7
1547.72?C37
1.3
2.6
8
1546.92?C38
1.0
2.8
3.2.The principle diagram of the module
?

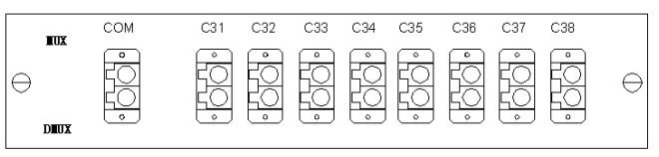

3.4 single LGX(EAST or West) WITH DWDM MUX/DMUX
3.5
East

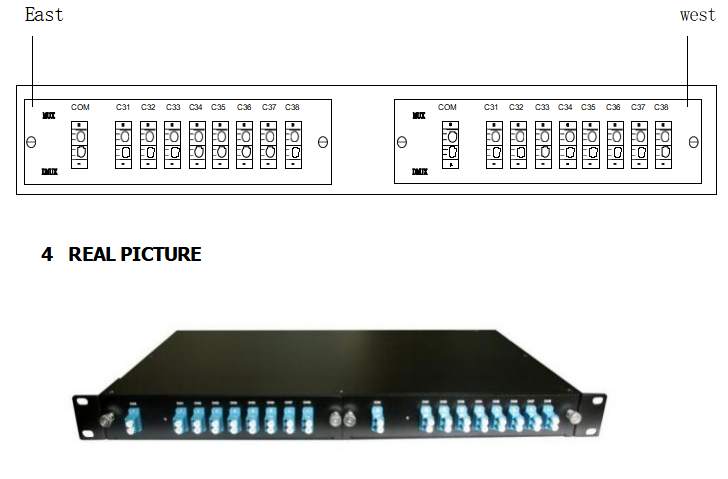

LGX(EAST?and West) loaded in on a 19’1U Rack
?
?
